PLEASE NOTE: This item is currently on 'PRE-ORDER' and will ship in 6-8 weeks. Your order will ship complete (with any other items ordered) when it's finished, and tracking will be updated via email at that time.
Billet CNC Machined 6061-T6 Aluminium Hubcentric Locating Center Caps

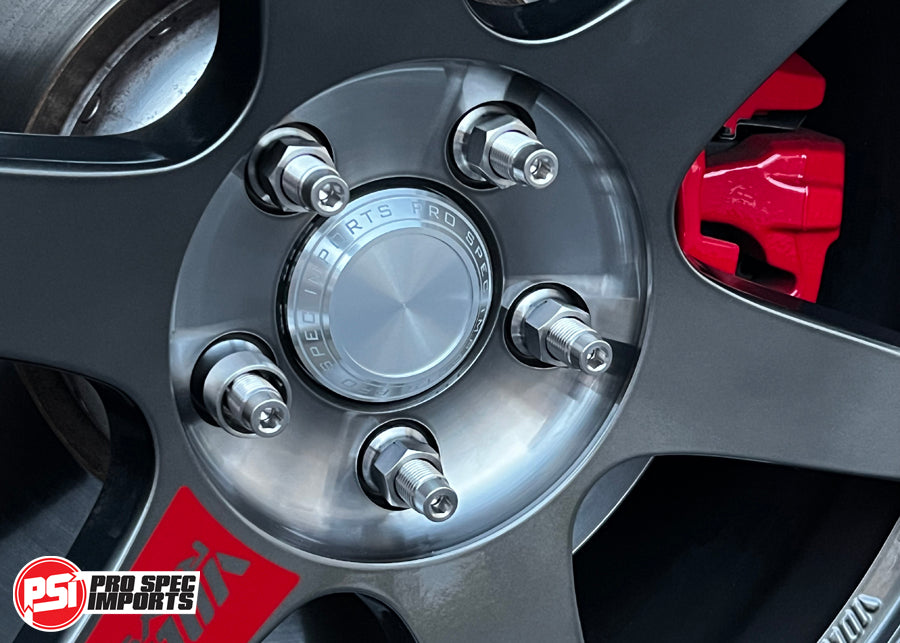

Pro Spec Imports exclusive design hubcentric locating centre caps offer a uniquely engineered solution to the problem of no centre cap wheels
Features and info:
- Stunning new Billet 6061-T6 Aluminum CNC machined Pro Spec Imports centre caps.
- They not only look great, but actually function as a hubcentric spacer ring. Adapting the Honda / Acura 64.1mm hub spigot to the correct 73.1mm wheel bore size to improve fitment, and help to minimize vibration.
- Integrated O-ring design ensures snug fit into wheel, that seals all water and debris from getting past.
- Guaranteed to NEVER lose a centre cap! You need to remove your wheel and fit the centre cap from the inside, this means it can never come off while driving.
- PLEASE NOTE: Due to the many variations in the TE37 face thickness the centre cap height may vary from the wheel face height.
- Price includes 4 x O-rings, special O-ring grease for installation and a black 'cigar' box with magnetic lid that can be re-used.
Available in 2 different colours (choose from drop down menu):
- Black Anodised
- Clear Anodised Machined Silver
Which wheels do they fit?
We have confirmed fitment on different variations of Rays, this includes the following:
- TE37SL all sizes
- TE37 all sizes
- TE37OG all sizes
- TE37V all sizes
- CE28SL all sizes
- **Will NOT fit SAGA or ULTRA
Due to the many variations in the TE37 face thickness, the centre cap height may vary from the wheel face height.
What do you get?
- 4 x high quality Billet 6061-T6 Aluminium Hubcentric Centre Caps.
- 4 x O-rings needed for fitment (pre installed).
- Quality O-ring grease (hi temp).
- Black 'cigar' box with magnetic lid that can be re-used.
- Pro Spec Imports Sticker.
Shipping Australia & New Zealand wide:
- Sent Airmail Tracked - 3 to 15 working days. Tracked only, no signature on delivery = $24.95 AUD
- Sent EMS Express - 2 to 10 working days. Tracked with signature on delivery = $39.95 AUD
Shipping Worldwide: USA, UK, Europe, Japan, Canada, Asia & everywhere else! -
- Sent Airmail Tracked - 6 to 20 working days. Tracked only, no signature on delivery = $49.95 AUD
- Sent EMS Express - 2 to 16 working days. Tracked with signature on delivery = $79.95 AUD
Installation tips LINKED HERE
Caring for the anodising:
- IN RARE OCCASIONS SOME CLEANERS ARE NOT SAFE ON ANODIZED METALS.
- Please check all wheel and car cleaners carefully and test on the inside of the centre cap first if unsure.
- WE HAVE TESTED THE FOLLOWING AND THEY ARE SAFE TO USE:
- (We have no association with any of these companies)
- 'Meguiars Ultimate All Wheel Cleaner'
- 'Bowdens Wheely Clean'
- 'Armour All Wheel Cleaner'
Want to know if these fit your wheels?
- These may well fit other wheels, we have confirmed they fit Work Meister. If you have another set of wheels and need centre caps contact us here and we will help to find out if they fit.
All parts are for 'Offroad / Show use' only
- Complete set of 4pc High-quality hubcentric centre caps, including the 4 x large O'Rings needed for installation.
- 1pcs Pro Spec Imports long-life vinyl sticker.
We have confirmed fitment on different variations of TE37, this includes the following:
- TE37SL all sizes
- TE37 all sizes
- TE37OG all sizes
- TE37V all sizes
- CE28SL all sizes
- **Will NOT fit SAGA or ULTRA
Due to the many variations in the TE37 face thickness, the centre cap height may vary from the wheel face height.
Australia
Airmail Tracked: 3–15 working days — Tracked, no signature required — $24.95 AUD
Express: 2–10 working days — Tracked, signature required — $39.95 AUD
New Zealand
Fully Tracked: 2–5 working days — Tracked — $19.95 AUD
United States
Simple shipping with DDP (Delivered Duty Paid).
For more details, please see our US Duty Paid Shipping Information Page.
Standard Post DDP: 8–25 working days — Tracked, no signature required — $49.95 AUD
EMS Express Courier DDP: 3–15 working days — Tracked, signature required — $99.95 AUD
United Kingdom, Europe, Japan, Canada, Asia & Other International Destinations
Airmail Tracked: 6–30 working days — Tracked, no signature required — $49.95 AUD
Express: 3–20 working days — Tracked, signature required — $79.95 AUD
Please note: These rates apply to eligible items. If a different shipping cost is specified on an individual product page, the product-specific shipping rate will apply.
Click here for Important Shipping & Delivery Information:
Centre Cap Fitting Guide (we recommend professional installation):
- Follow the instructions for all 4 wheels.
- You must remove the wheel for installation.
- IMPORTANT: If you have hubcentric rings fitted in the wheel or on the vehicles centre hub spigot they must be removed.
- Test fit the centre cap onto the vehicles centre hub spigot first. ensure it locates on the centre hub spigot and sits flush against the hub face with no gap.
- If the axle nut split pin is bent over the end of the axle it may be in the way of the centre cap. Bend and turn the pin so it goes around the outer circumference of the axle instead.
- Now add a small amount of vaseline or grease to the O-ring before installing the centre cap into the wheel.
- Now fit the centre cap to the inside of the wheel, they are a snug fit, ensure they are lubed first, pushing on the edges of the centre cap (not the centre) push them right in and ensure they are seated flush with the wheel face and not protruding.
- Now the centre caps are fitted you can put the wheels back on, note how the centre cap locates the wheel hubcentrically onto the hub. This will centre the wheel more accurately, improving fitment and reducing possible vibration.
- **IMPORTANT** Ensure the wheel is fully seated against the hub face and there is no interference or issues before tightening the wheel and driving the vehicle
- IN RARE OCCASIONS SOME CLEANERS ARE NOT SAFE ON ANODIZED METALS.
- Please check all wheel and car cleaners carefully and test on the inside of the centre cap first if unsure.
- WE HAVE TESTED THE FOLLOWING AND THEY ARE SAFE TO USE:
- (We have no association with any of these companies)
- 'Meguiars Ultimate All Wheel Cleaner'
- 'Bowdens Wheely Clean'
- 'Armour All Wheel Cleaner'
We made it easier by adding a 46mm diameter recess at the top of each 'Plain Top' centre cap for sticker placement. This means you can go to your local sticker maker (sign writers usually) and get 46mm stickers with logo of your choice in a colour that suits your car made to customize the caps to suit your taste, add a custom paint job to the caps and you've really got something unique for your wheels.
If you have another set of wheels and need centre caps contact us here and we will help to find out if we have something to suit!
